SlabDrain – Features & Benefits

H100K-6/H100KS-6
H100K-8/H100KS-8
H200K-13/H200KS-13
H300K-13/H300KS-13

H100SK-10
H200SK-13
H300SK-13

H100-8
H100-10

QuickLok® & DrainLok

HK/HKS Steel Edge Rail

H100 Polymer Concrete Edge

Interconnecting End Profiles

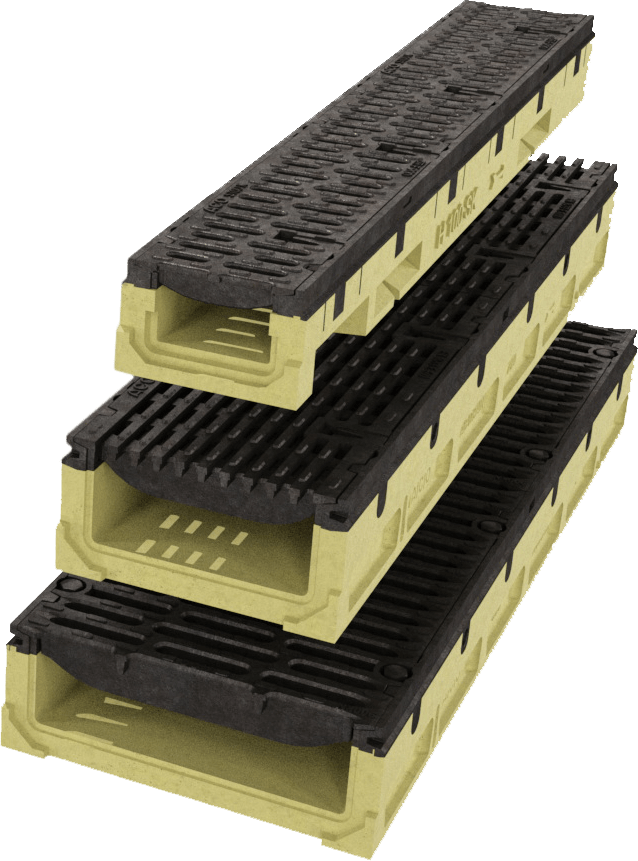

A side view of 3 ACO SlabDrain Systems— HSK Series (Iron Edge)

Wide Choices of Grates

Provides maximum strength and protection for channel body.

Ideal for situations where metals cannot be used.

Allow easy and effective joining of channels.

In various materials, styles and slot configurations (including ADA compliant). H100 - From Load Class A to Load Class C (25 tons). H100K/H200K/H300K - From Load Class A to Load Class E (60 tons).

Patented, boltless locking systems provide quick fitting and removal of grates. Helps reduce installation/ maintenance time and cost. H100 will accept QuickLok® grates only.

Ductile Iron Grates

Knock-Outs

HSK Ductile Iron Edge Rail

PowerLok

Anti-Shunt Lugs

Provides maximum strength and protection for channel body.

Protrusions in HSK grate fit into recesses on the edge rail to prevent longitudinal movement.

Heavy duty ductile iron grates in choice of Load Class F slotted or longitudinal ADA compliant (H200SK & H300SK ADA grates are rated to Load Class E). A 4-bolt slotted grate is also available.

Included on every 5th channel to allow vertical evacuation of the system along the run.

A patented, boltless locking system that allows for quick fitting and removal of HSK grates, helping reduce installation/ maintenance time and cost.

SlabDrain Product Types:
(click for more information)

H100-8/H100-10/H100K-6/H100KS-6/
H100K-8/H100KS-8/H100SK-10 - 4" Width
H200K-13/H100KS-13/H200SK-13 - 8" Width
H300K-13/H300KS-13/H300SK-13 - 12" Width

Additional Features & Benefits:
Polymer Concrete
Integral Iron Rails
Profiled Side Walls

H Series

HK Series HSK Series
