ACO StormBrixx®

ACO StormBrixx® is an underground stormwater detention and infiltration system consisting of a single, recyclable, polypropylene body that can be assembled in a variety of ways to form an open bonded structure.

Plastic geocellular systems are a widely accepted method of storing stormwater, a drawback of many of these systems is the lack of accessibility for maintenance.

ACO StormBrixx® was developed to address accessibility issues and to enable easy maintenance. The system provides 3-dimensional access for inspection and maintenance while retaining its structural integrity under load.

ACO StormBrixx address the ‘Hold’ element of the ACO System Chain; the final stage is release. To manage the ‘Release’ stage, ACO has a range of flow control systems that regulate stormwater flow before it discharges into the watercourse or sewer networks.

ACO can help you configure your own geocellular stormwater tank to facilitate stormwater retention, detention or infiltration based on the hydraulic, structural and maintenance requirements of the project.

What is ACO StormBrixx®?

ACO StormBrixx® is a unique, patented, plastic geocellular stormwater management system. The system is designed for surface water detention, retention, infiltration and reuse. Its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of a Sustainable Drainage System.

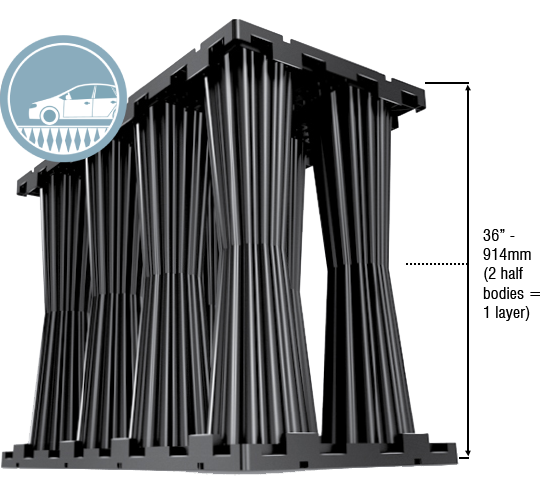

StormBrixx SD

Regular duty system

Applications

  • Landscaped areas, no vehicles
  • Landscaped areas with ride on mowers
  • Pedestrian areas
  • Driveways, parking lots
  • Fire trucks, garbage trucks, delivery vehicles
  • For applications with high ground water contact ACO

StormBrixx® SD technical details

No. of layers* 1-3 layers
Vertical Strength 7,300psf (350 kN/m²)
Lateral Strength 1,460psf (70 kN/m²)
Design Life 50 years
Minimum Cover – Landscaped 20” (0.5m)
Minimum Cover – Parking lots 24” (0.6m)
Maximum Installation Depth** 14.75’ (4.5m)

*Extra layers may be suitable in specific applications contact ACO.
**Ground improvements may be required and ground water has not been taken into account. Seek engineering advice.

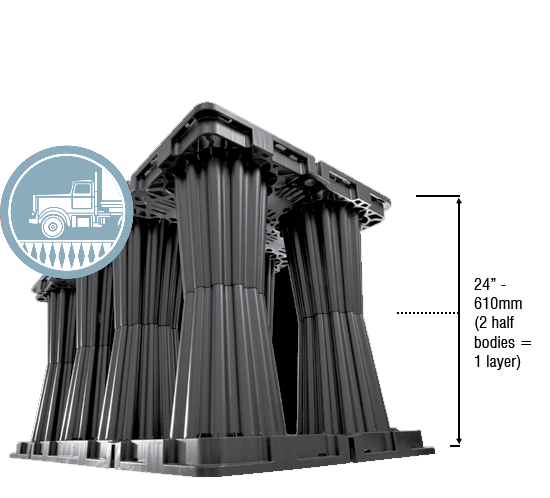

StormBrixx HD

Heavy duty system

Applications

  • Landscaped areas, no vehicles
  • Landscaped areas with ride on mowers
  • Pedestrian areas
  • Driveways, parking lots
  • Fire trucks, delivery vehicles, semi-trucks
  • For applications with semi-trucks and/or high ground water contact ACO

StormBrixx® HD technical details

No. of layers* 1-4 layers
Vertical Strength 9,500psf (455 kN/m²)
Lateral Strength 1,985psf (95 kN/m²)
Design Life 60 years
Minimum Cover – Landscaped 20” (0.5m)
Minimum Cover – Parking lots 24” (0.6m)
Minimum Cover – Truck traffic 31” (0.8m)
Maximum Installation Depth** 19.7’ (6.0m)

*Extra layers may be suitable in specific applications contact ACO.
**Ground improvements may be required and ground water has not been taken into account. Seek engineering advice.

SD

SD

Standard duty system

HD

HDtrans-304x272 (3)

Heavy duty system

Q-Brake_Vortex

Horizontal vortex flow control unit and conventional orifice plate
