ACO StormBrixx — HD

  Part No.Length
in [mm]
Width
Overall
in [mm]
Depth
Overall
in [mm]
Weight (lbs)

HD Half-Module

31406147.44
[1205]
23.70
[602]
13.50
[343]
22.40
[10.20]

HD Side Panel

31406223.62
[600]
23.62
[600]
2.17
[55]
3.79
[1.72]

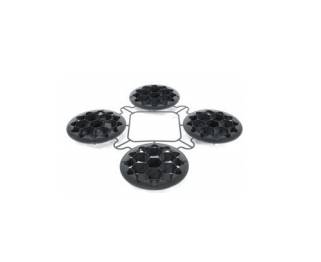

HD Top Cover

31402221.57
[548]
21.57
[548]
1.70
[43]
1.79
[0.81]

HD Layer Connector

3140233.94
[100]
1.58
[40]
1.82
[46]
0.03
[0.02]

HD Remote Access Unit

2703423.39
[594]
23.39
[594]
24.02
[610]
70.50
[31.98]

HD Remote Access Unit with Adapter Plate

13814024.41
[620]
23.39
[594]
24.02
[610]
71.00
[32.21]

HD Half-Layer Side Panel

31409523.31
[595]
11.67
[297]
1.26
[32]
1.98
[0.90]
  Part No.Length
in [mm]
Width
Overall
in [mm]
Depth
Overall
in [mm]
Weight (lbs)

Remote Access Plate

31407525.59
[650]
25.59
[650]
4.72
[120]
10.78
[4.90]

Half-Layer Top Cover Plate

31409447.25
[1200]
23.63
[600]
3.70
[94]
7.70
[3.50]

Remote Access Cover - Ductile Iron (Load Class D400 - 40 Ton)


314043-Ø20.79
[528]
4.34
[110]
86.46
[39.30]

Remote Access Vented Cover - Ductile Iron (Load Class D400 - 40 Ton)


314053-Ø20.79
[528]
4.34
[110]
83.60
[38.00]

Inspection Point Cover - Ductile Iron (Load Class D400 - 40 Ton)

314044-Ø8.85*
[225]
2.95
[75]
34.54
[15.70]

Extension Shaft

314038-Ø17.21
[437]
13.78
[350]
4.84
[2.60]

Extension Shaft with Pipe Socket

314039-Ø17.21
[437]
13.78
[350]
6.16
[2.80]

Vertical Inspection Point Connector

27018-Ø8.85*
[225]
7.87
[200]
5.52
[2.50]

Horizontal Pipe Connectors

931398.00
[203]
Ø4.00* [102]
(SDR 35)
6.70
[170]
1.90
[0.86]
931458.00
[203]
Ø4.00* [102]
(SCH 40)
6.70
[170]
1.90
[0.86]
931408.00
[203]
Ø6.00* [152]
(SDR 35)
10.22
[260]
3.30
[1.49]
931468.00
[203]
Ø6.00* [152]
(SCH 40)
10.22
[260]
3.30
[1.49]
931418.00
[203]
Ø8.00* [203]
(SDR 35)
11.64
[296]
4.40
[2.00]
931478.00
[203]
Ø8.00* [203]
(SCH 40)
11.64
[296]
4.30
[1.95]
931428.00
[203]
Ø12.00* [305]
(SDR 35)
16.66
[423]
7.00
[3.18]
931448.00
[203]
Ø15.00* [381]
(SDR 35)
21.71
[551]
10.80
[4.89]
Catalog/Cut Sheet
Specification Information Sheets
Installation Section Details
Description Documents
PDF DWG
StormBrixx, HD - Detention - One Layer Download Download
StormBrixx, HD - Detention - Two Layers Download Download
StormBrixx, HD - Detention - Three Layers Download Download
StormBrixx, HD - Detention - Four Layers Download Download
StormBrixx, HD - Infiltration - One Layer Download Download
StormBrixx, HD - Infiltration - Two Layers Download Download
StormBrixx, HD - Infiltration - Three Layers Download Download
StormBrixx, HD - Infiltration - Four Layers Download Download

ACO StormBrixx

ACO Stormbrixx is a unique and patented plastic geocellular stormwater management system. Designed for surface water infiltration and storage, its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of an integrated sustainable urban drainage (SUDS) scheme.

ACO StormBrixx: Assembly & Installation

StormBrixx being assembled and installed. ACO Stormbrixx is a unique and patented plastic geocellular stormwater management system. Designed for surface water infiltration and storage, its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of an integrated sustainable urban drainage (SUDS) scheme.

ACO StormBrixx Build Comparison

To showcase the speed and ease of StormBrixx construction, our R&D Supervisor was kind enough to give a timed demonstration alongside a product sold elsewhere. ACO Stormbrixx is a unique and patented plastic geocellular stormwater management system. Designed for surface water infiltration and storage, its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of an integrated sustainable urban drainage (SUDS) scheme.

ACO StormBrixx Install: Porterville, CA

ACO StormBrixx installed at Strathmore High School in Porterville, CA. ACO Stormbrixx is a unique and patented plastic geocellular stormwater management system. Designed for surface water infiltration and storage, its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of an integrated sustainable urban drainage (SUDS) scheme.

ACO StormBrixx How-To Series: Brickbonding of Main Bodies

Brick-bonding is a technique to interlock ACO StormBrixx modules together in an overlapping manner. This method can be performed in both horizontal directions, ensuring that tanks of any size can be assembled and fully interlocked.

ACO StormBrixx How-To Series: Cut a Main Body in Half

Depending on your project, you may need to cut an ACO StormBrixx module into two equal pieces. Here’s how!

ACO StormBrixx How-To Series: Install Side Panels

Side panel perimeters for the entire system offer a sound base for laying geotextile fabric. One side panel fits one module (two assembled half-modules). Learn how to install them here!

ACO StormBrixx How-To Series: Install Top Covers

Top Covers are used to close off the openings of the columns on the top-most layer of the geoceullular system. These covers prevent ground cover material from being pushed into the columns under the load. Learn how to install them here!

ACO StormBrixx How-To Series: Layer Connectors

When assembling multiple layers of ACO StormBrixx, the layers are aligned and secured by two Layer Connectors clicked together. Learn how Layer Connectors work today!

ACO StormBrixx How-To Series: Install Remote Access Unit and Extension Shaft

The Remote Access Unit and Extension Shafts are used to gain access to an installed ACO StormBrixx system. Learn how to install these products today!

ACO StormBrixx How-To Series: Pipe Connection into Remote Access Unit

Pipe connections can be placed directly into a Remote Access Unit by cutting along the preset templates. ACO also offers a range of Horizontal Pipe Connectors.

ACO StormBrixx How-To Series: Pipe Connection Into Side Panel

Pipe connections can be placed directly into an ACO StormBrixx Side Panel by cutting along the preset templates. ACO also offers a range of Horizontal Pipe Connectors if needed.

ACO StormBrixx How-To Series: SD Half Layer Assembly Using Cover Plate and Half Side Panel

A Half Layer Top Cover Plate and Half Layer Side Panel are available for ACO StormBrixx SD applications where a standard system height might not be applicable, such as locations with depth restrictions or high water tables. Learn more here!

ACO StormBrixx How-To Series: Install Remote Access Plate and Extension Shaft

The Remote Access Plate and Extension Shafts are used to gain access to an installed ACO StormBrixx system for inspection and/or maintenance. Learn how to install both pieces here!

StormBrixx Maintenance Video

Learn how to maintain and inspect your StormBrixx tank today! The open design of StormBrixx allows the system to be inspected through the inlet connection, remote access unit, remote access plate, or inspection points. This allows the system to be inspected for sediment build-up and enables collected sediment to be removed from the infiltration system or flushed through a detention/retention system.
