Parking Garages

Parking Garages

ACO has developed products especially for ​​multilevel parking. These were designed in such a way that the special requirements for the drainage of parking garages are met.

Parking Garage Entrance – In order to prevent damage, parking garage entrances in particular must remain dry. In addition, access ramps are among the most heavily frequented and polluted areas in underground garages. Accordingly, particularly resistant channel solutions are required, which must also be tailored to the special features of ramps.

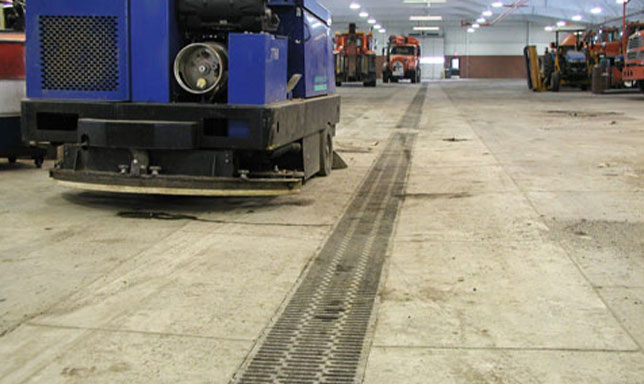

A sample drain system installed in a commercial parking lot

Low Ceiling Construction – It is known that space is used to the maximum in multi-story car garages. This already has an effect on the general planning of multilevel parking garages. The ceiling construction on parking decks is particularly low. Of course, the drainage channels and drains must also meet these special requirements and be designed lower.

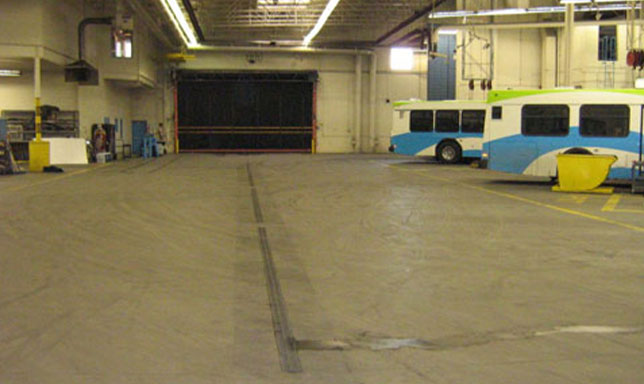

A sample drain system installed in a commercial parking lot

Sundecks – In the event of heavy rain, the drainage system must also be able to drain off large amounts of rainwater quickly and safely. Also note that sundecks are exposed to direct sunlight. With particularly resilient channels, you can avoid possible damage and malfunctions

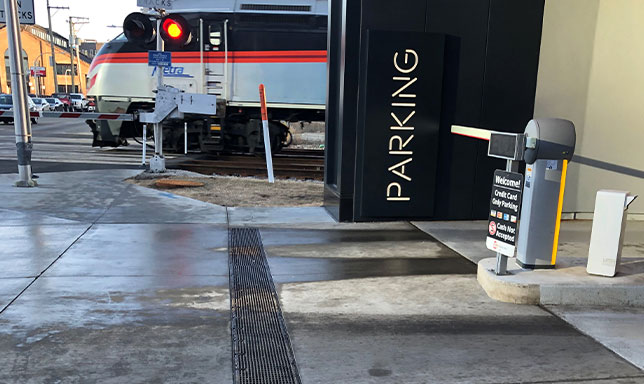

A sample drain system installed in a commercial parking lot

Maneuvers & Parking – When planning, also bear in mind that hundreds of maneuvers are carried out in a parking garage every day. This not only affects the surfaces. In the event of unfortunate parking attempts, pipes or columns can also be approached. Therefore, these should also be particularly resistant and not dent or bend.

Pipes

Several ACO product recommendations include:

A side view of the ACO SlabDrain product line of drain channels

Shallow depth trench drain systems in 4” (100 mm), 8” (200 mm) & 23” (300 mm) internal widths

A sideview of a membrane no-hub drain

For applications in which the trench drain will be positioned above an impermeable membrane or waterproofing

A side view of KlassikDrain

Steel-edge, modular trench systems in 4” (100 mm), 8” (200 mm) & 12” (300 mm) internal widths

A side view of the PowerDrain product line

Heavy-duty iron edged, modular trench systems in 4” (100 mm), 8” (200 mm) & 12” (300 mm) internal widths

A side view of an Aquaduct drain channel

Custom manufactured drainage

A side view of the ACO UtilityDuct product line of drain channels

Ducting system for surface level utilities
